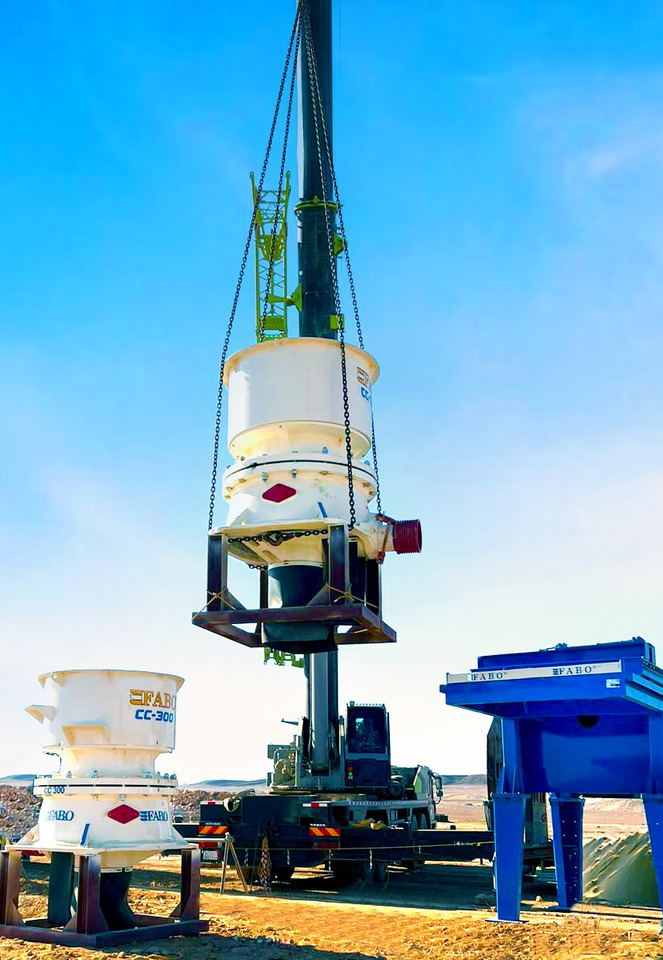

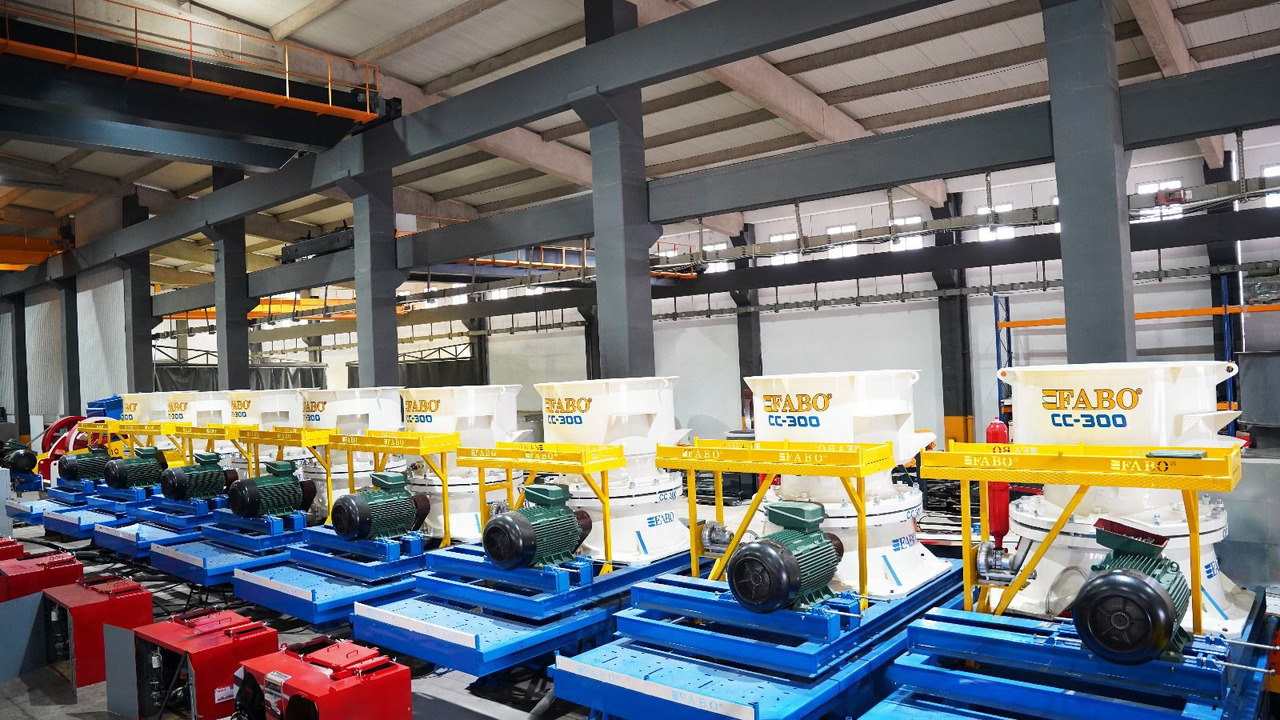

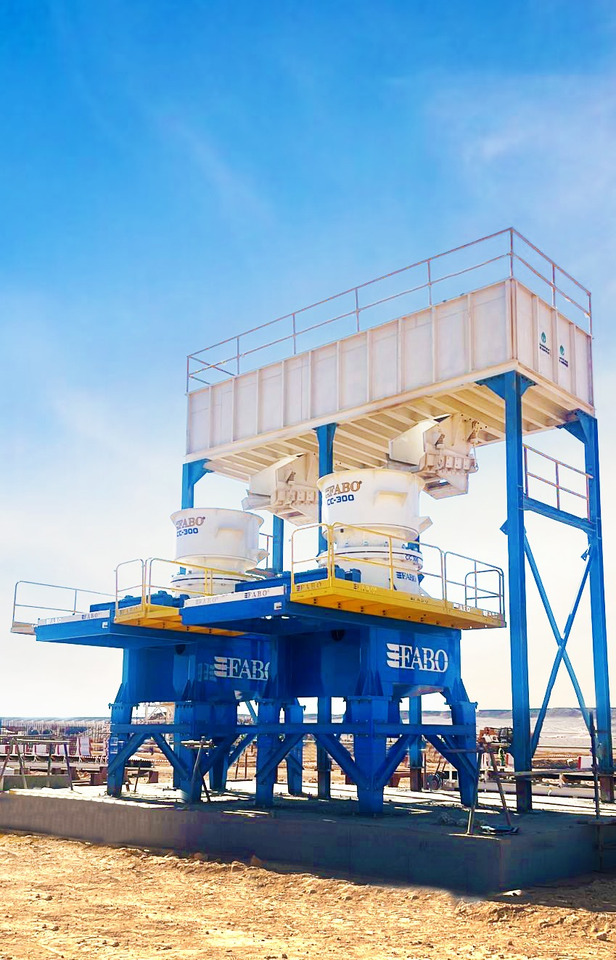

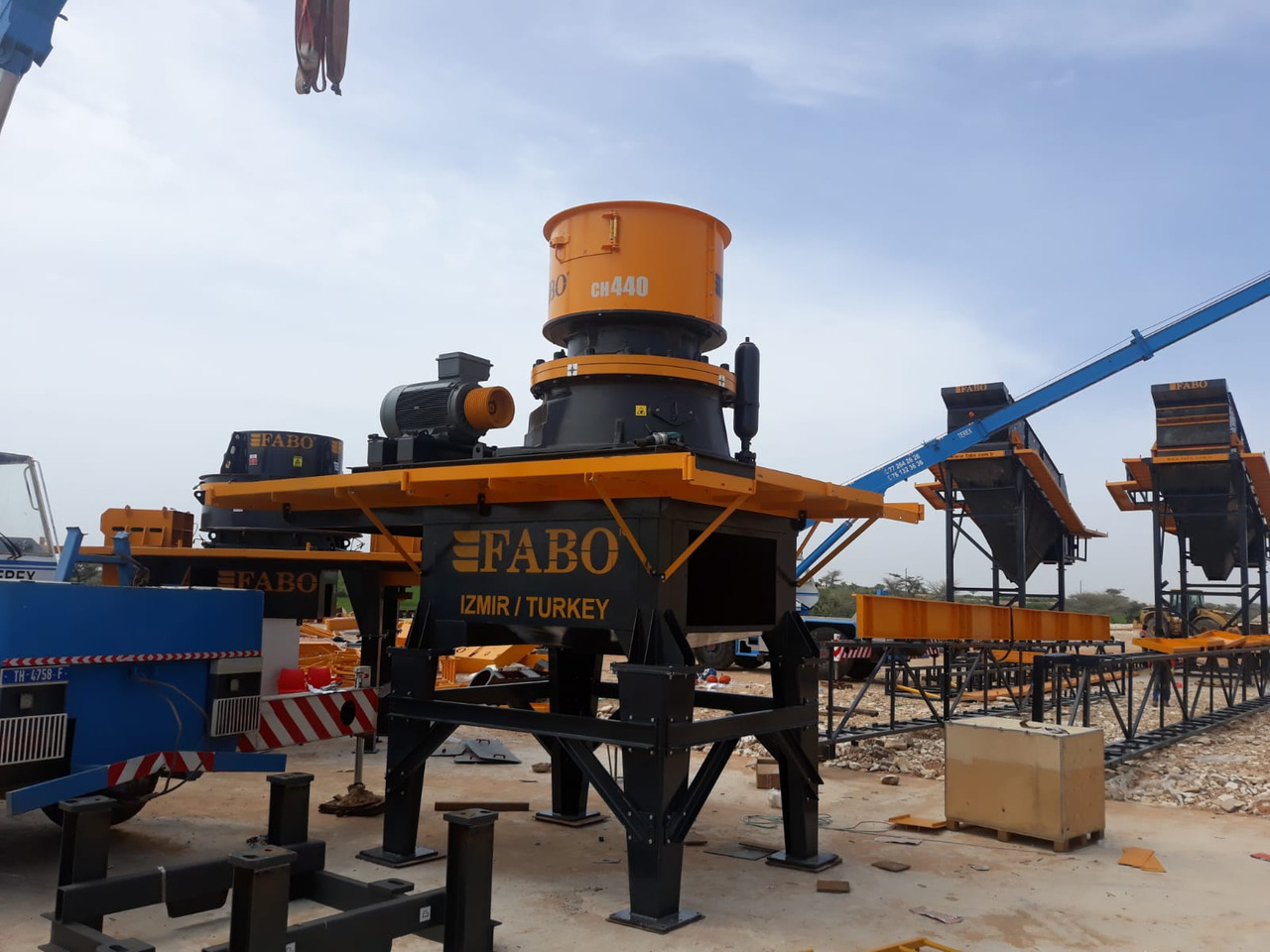

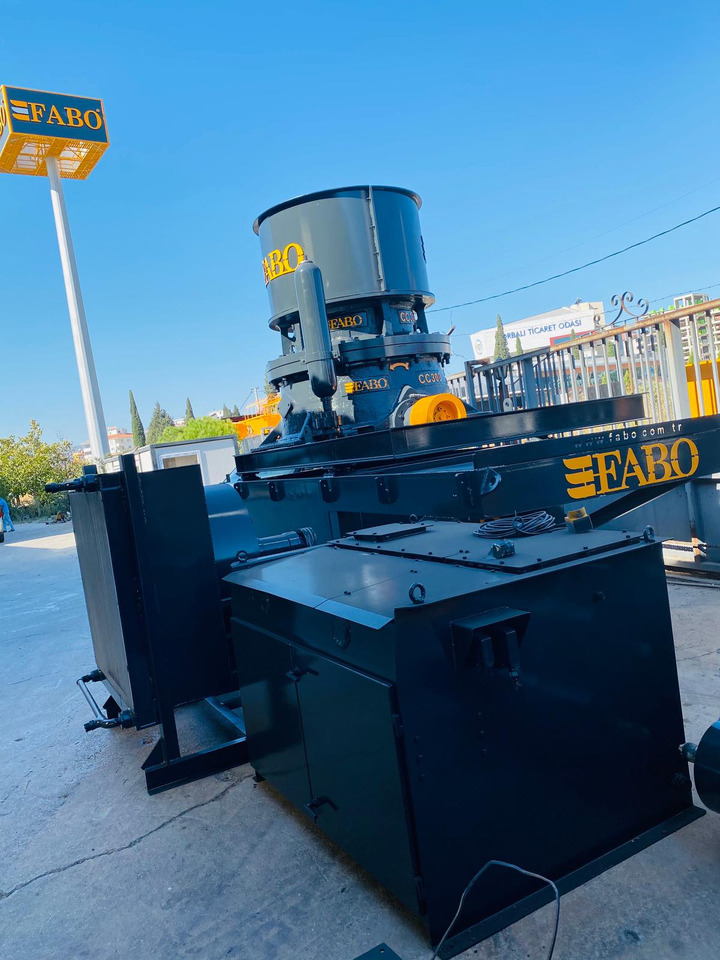

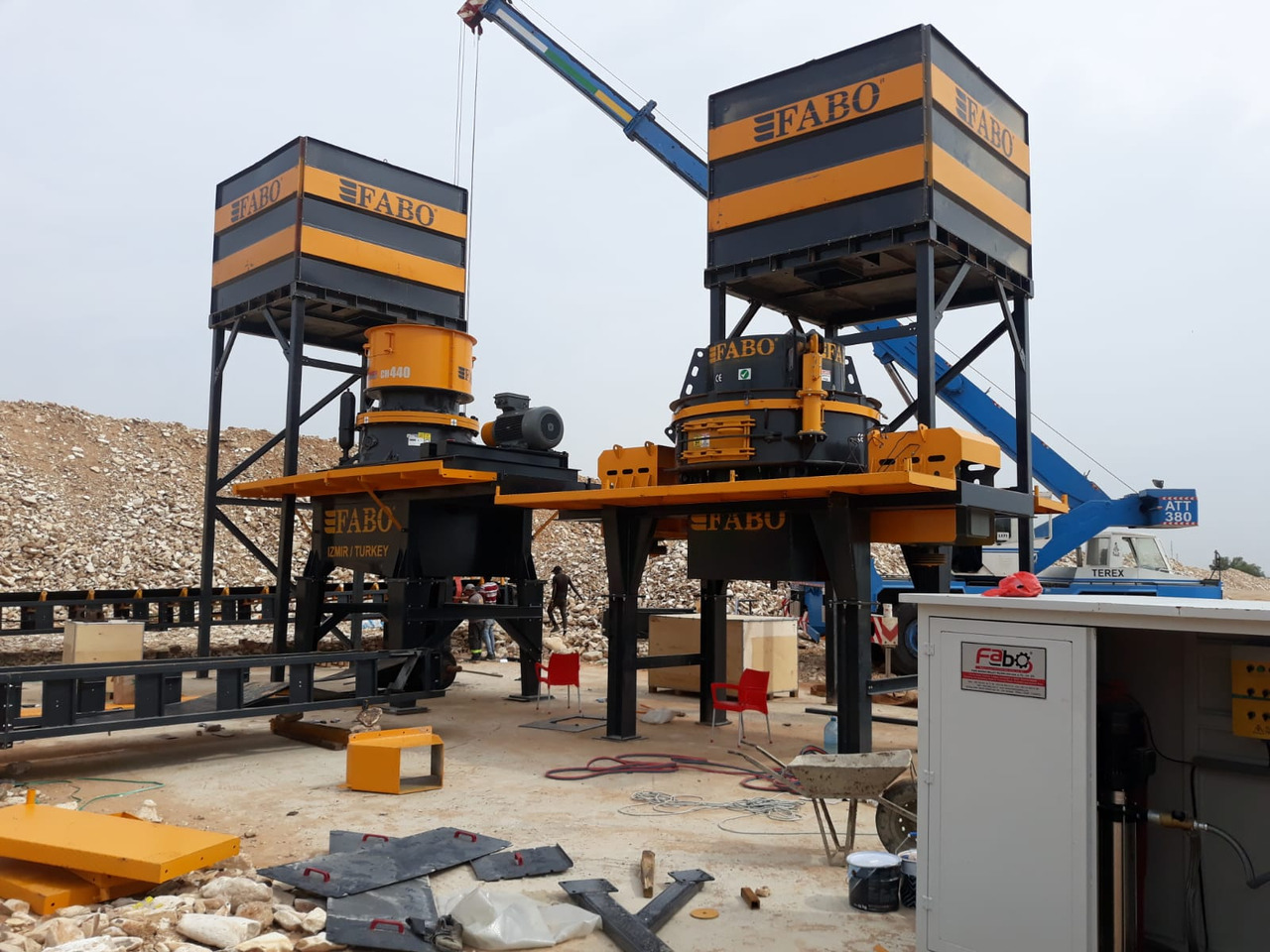

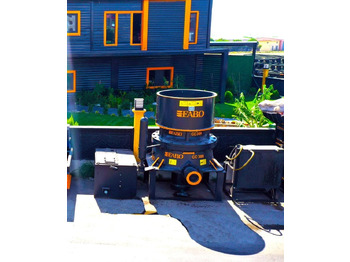

Trituradora de cono nuevo FABO CC-300 SERIES 300-400 TPH CONE CRUSHER

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

Cone crusher product group is designed especially for the hardest material, cone crushers are one of the best choices for crushing river gravel, basalt and granite, along with abrasive materials in the mining industry. The working principle of cone crushers is to break the material by compression, by squeezing it between its walls, which are completely covered with resistant mantle and a bowl liner. It has longer life than other crushers thanks to its long life wear parts.

Model: FABO CC300

Capacity: 300-400 t/h

Max. Feed opening:

EC 215 mm

C 175 mm

MC 140 mm

M 110 mm

MF 85 mm

F 70 mm

EF 38 mm

Motor: 200 kW,

Head diameter: 1200 mm

Dimensions (width * height): 3030 * 2775 mm

Countershaft Speed-rpm: 750-1200

Weight: 23000 kg

• Hydroset Control
• Automatic Load Protection
• Practical discharge
• High capacity cubic production
• High-performance contactless labyrinth
• High productivity, low energy production and lower wear costs, long service life and high product yield with desired fine powders.
